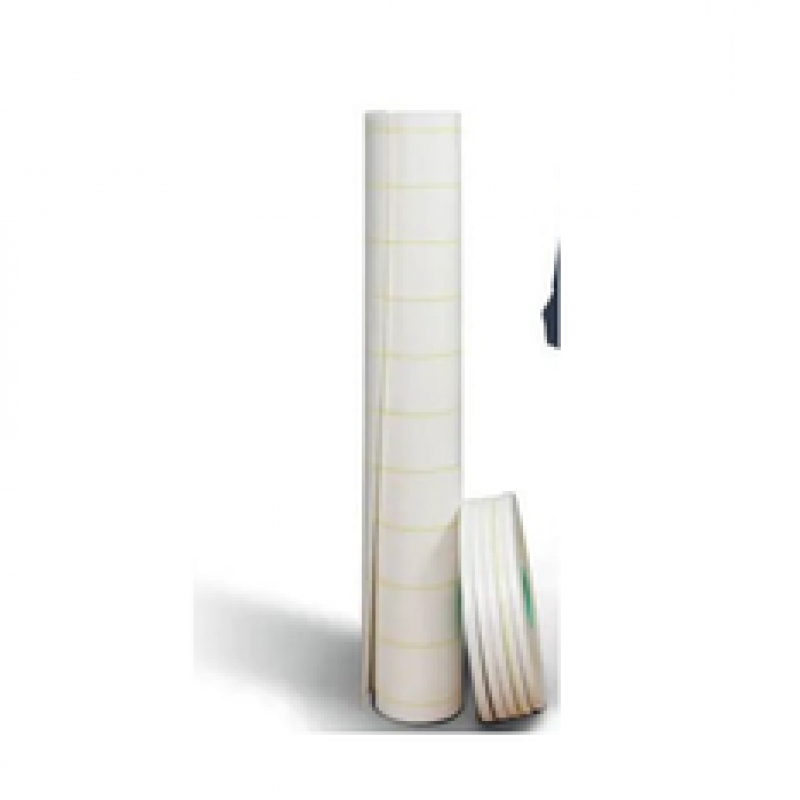

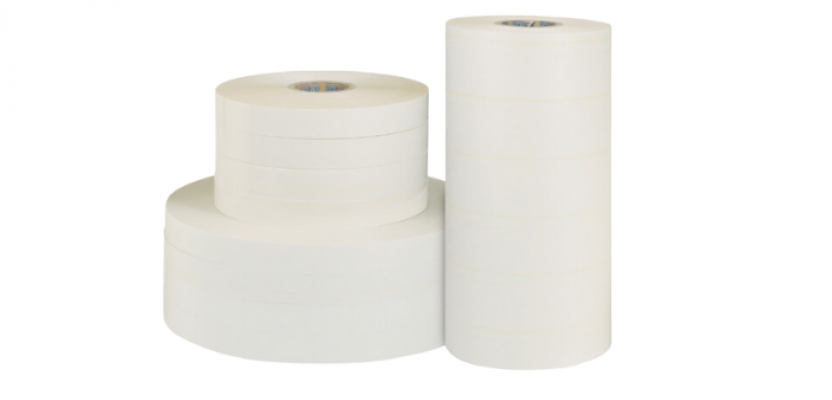

Nmn Prepreg
NMN Pre - Preg is an insulation material that is coated with H class epoxy resin on both sides of NMN Laminate. The epoxy resin layer coated on it melts and hardens in the drying oven, thus ensuring that the layers adhere to each other and providing excellent electrical insulation.
Technical Properties
| Properties | Unıt | Tolerance | LAMITHERM ANPAN HPREG | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Total Thickness | mm | ± 10% | 0.18 | 0.20 | 0.37 | 0.48 | ||||
| Grammage(Base Material) | gr/m² | ± 15% | 155 | 190 | 435 | 575 | ||||
| Resin Content Grammage (Both Sides) | gr/m² | ± 20% | 24 | |||||||
| Dielectric Strength | kV | minimum | 6 | 7 | 13 | 18 | ||||
Nomex® is Dupont registeredtrademark.
All values are according to IEC 626.
Dielectric strength values are characterictic values according to ASTM D149.
